General Information:

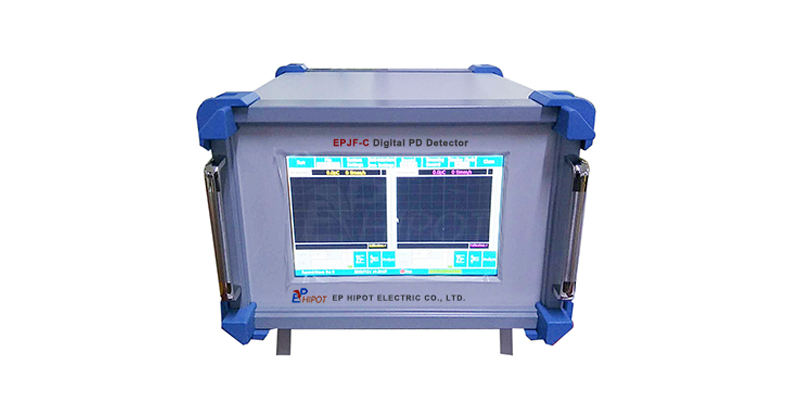

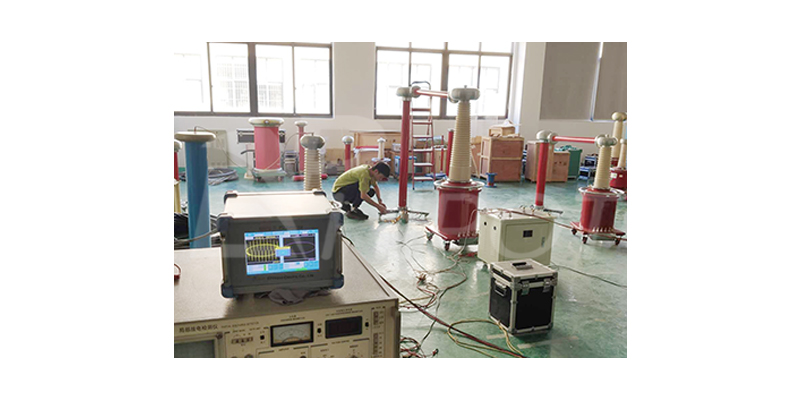

The EPJF-C partial discharge detector (hereinafter referred to as PD) is a new generation of high-performance digital PD measurement and analysis instrument, which is implemented by new technology. It is an alternative product of the traditional analog PD instrument. Anti-interference technology of its various original so that you can accurately measure under the condition of strong interference; friendly user interface and high-speed sampling and refresh rate, with analog PD instrument visual effects, analysis, waveform records provided means to make you very easy to judge the nature of discharge, automatic recording and processing of test data that will soon be able to generate and test report; double channel embedded system, TFT touch screen, the system is stable and reliable, low failure rate. The system uses computer technology, analog electronic technology, high-speed signal acquisition technology, advanced digital signal processing and graphic display technology to complete partial discharge automatic measurement and analysis.

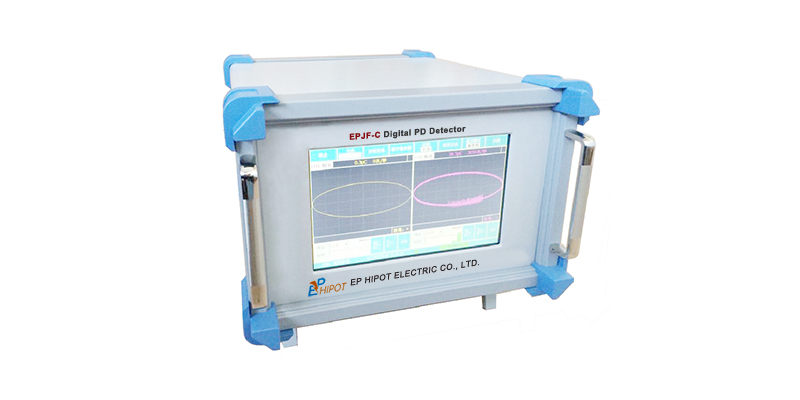

The discharge detector uses WINDOWS series operating platform, can choose the ellipse, straight line, sine wave display, 2D and 3D graphics analysis and spectral window and Q-V-F window on the static three-dimensional characteristics, a frequency voltage test and partial discharge pulses with measurement, observation and analysis. It can be operated by digital window, at any phase, single window and double window are chosen, ellipse is rotated at 360 degrees in order to avoid the influence of interference on measurement. Multichannel measurement and digital differential technology can flexibly make up the pulse polarity identification or balance measurement circuit, and effectively suppress the interference pulse signal. The advanced spectrum analysis can effectively reduce the background interference. A multichannel input channel, which can be boosted by six sets of signals (extensible), can easily be used to analyze the source of the signal. In the operation platform of the whole English character, the frequency band selection, the gain transformation, the spectrum analysis and the two-dimensional and three-dimensional graphic display can be conveniently carried out. In addition, the system can also print or save single graphics to save continuous time graphic data for analysis.


Features:
-Anti-interference technology allows you to make accurate measurements in strong interference environments.
-Friendly user interface and high-speed sampling refresh rate, with the visual effect of analog PD.
-The various waveform analysis and recording methods provided make it easy to judge the nature of the discharge.
-Automatic recording and processing of various test data can quickly generate test reports with pictures and texts.
-Using dual-channel embedded system, TFT touch screen, the system is stable and reliable, and the failure rate is low.
-The system comprehensively uses computer technology, analog electronic technology, high-speed signal acquisition technology and advanced digital signal processing and graphic display technology to complete automatic measurement and analysis of partial discharge.


Technical Specifications:

Number of channels

2 Electrical signal interfaces, one external synchronization interface

Sampling accuracy

12bit

Range switching

60dB, 50dB, 40dB, 30dB, 20dB, 10dB, 0dB, -10dB total 8 positions

Frequency range

80k-200kHz, 40k-300kHz

Non-linear error of this range

5%

Measuring range

0.1pC~100000pC

Sensitivity

0.1pC

Testable capacitance range

6pF250µF

Test power frequency range

50400Hz

Display

7” TFT True color touch LCD

Resolution

800×480

Physical storage

256MB DDR2, Running memory

SD card storage

Standard 8G card (32G is at option), used to store test records and test data

RS232

Used for synchronous transmission interface with PC

USB

Can be connected with external mouse and keyboard, as well as external mobile storage devices

Power mode

AC 220V

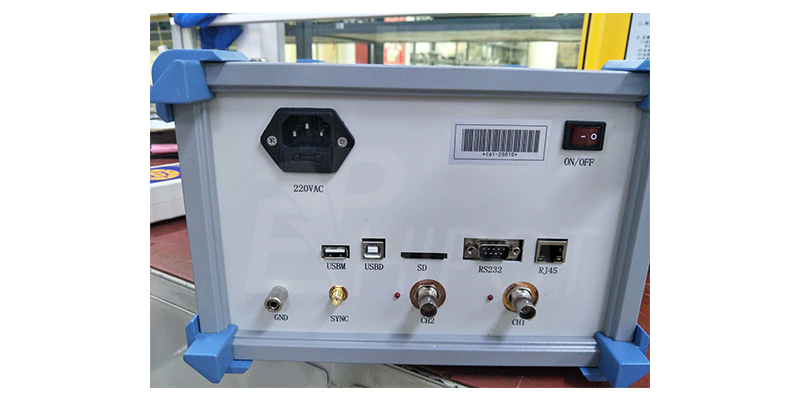

Electrical signal interface

2 channels BNC interface for signal input

SMA interface

External synchronization interface

SD card slot

Can support SD card up to 32G

Network port

Scalable

Ground button

For external grounding

CPU

Main frequency 533MHz

System

WINCE6.0

Working temperature

-20 to 45

Storage temperature

-20 to 60

Dimension

(L)350mm × (W)245mm × (H)175mm

Net weight

5.8kg
